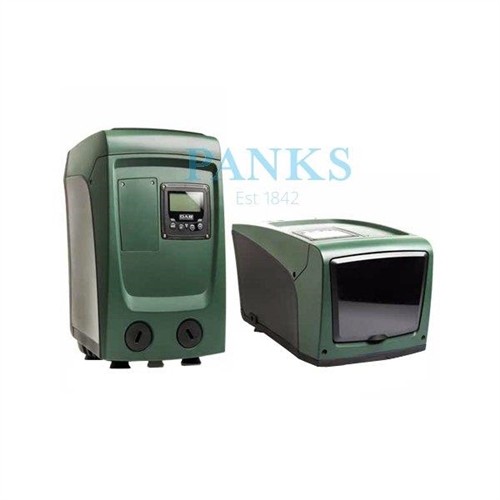

The Dab E.Sybox Mini³ Electronic System is a complete water booster system for a single dwelling. The pump is multi-stage with self-priming capacity of 8m max and has in-built variable speed drive. Extremely quiet running, easy to install and simple to maintain.
With a maximum pressure of 5.5 bar and maximum flow rate of 80 litres per minute, the E.Sybox Mini³ is suitable for drinking water, in domestic and gardening applications.
Consisting of a 3 impeller self-priming multistage pump, the inverter driven unit comes with pressure and flow sensors, and an adjustable LCD display with 1 litre built-in expansion vessel for easy set up and use.
With the latest version of the E.Sybox Mini, two pumps can be connected together, and with the DAB D-Connect App, they can be controlled from from anywhere.
Double suction and delivery ports allow for both horizontal and vertical installation and the E.Sywall wall bracket allows for wall installation, freeing up even more space.
| Dimensions (L x W x H) | 439 x 263 x 236mm |
| Rated Voltage | 220 - 240V / 50Hz |
| Power consumption | 800 Watts Max |
| Net weight | 14.0Kg |
| Max flow rate | 80 litres / minute |
| Max. head height | 55 metres |
| Maximum Suction Depth | 8 Metres |
| Liquid Temp. Range | 0°C to +40°C |
| Max. Ambient Temp. | 55°C |
| Limited Warranty | 2 years |
| Product No. | 60212601 |
